How far away can vent be from toilet?

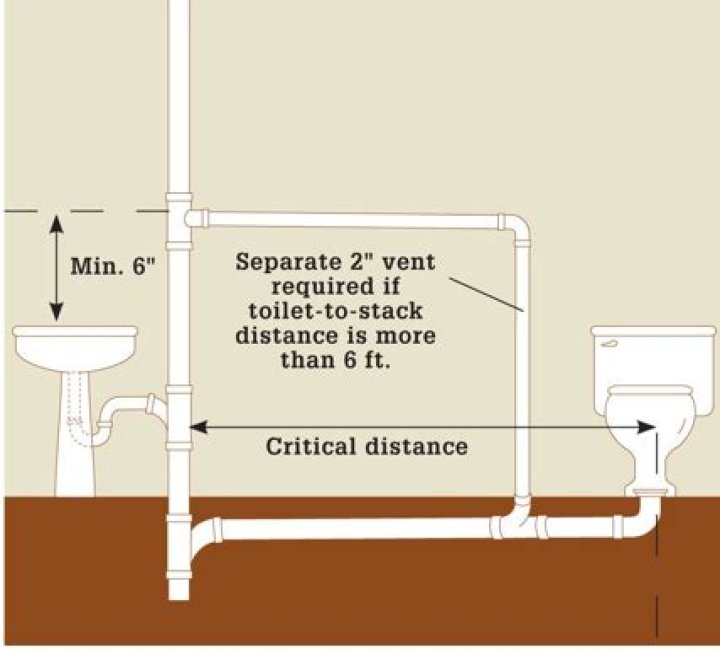

Toilet Vent Distance

According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.

Can a toilet and sink share a vent?

A general rule is that you can only vent 2 fixtures on a toilet wet vent. The sink drain has a toilet vent through it. The toilet drain should be 3′′, the sink drain is 1.5′′, the shared sink drain/toilet vent area should be 2′′, and the vent going up should be 1.5′′.

Do you need a vent for every toilet?

Whether you're putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly. If there is no vent, a number of problems may occur: The fixture without a vent may drain slowly. The drain will likely make gurgling noises.

Can a vent be upstream from a toilet?

A toilet vent can be upstream. The purpose of the vent pipe is to allow the sewer's gases to escape from the house's roof rather than inside the house. A vent also allows oxygen to enter into the sewer pipes, which allows the waste to break down and prevents clogging.

Does a toilet need a vent stack?

“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.

How Far Should a Plumbing Vent Be From the Fixtures? : Plumbing Repair

What happens if a toilet isn't vented?

Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.

Can you put a cheater vent on a toilet?

Don't worry if you do not have a vent pipe in your house, or if it is blocked and you can't fix it. Instead of thinking about massive construction projects, you can use an Air Admittance Valve, well-known as a cheater vent.

How far can a vent pipe be from the drain?

For pipes that have a diameter of 3 inches the distance is 6 feet and for a 4-inch pipe the most it should be away from the vent is 10 feet. Keep in mind that toilets have their own traps so there is no need to have one on the drain line, but it still must have a vent.

Can a toilet vent run horizontal?

There is no problem with running your vent pipes horizontally as long as you remember that there should be a minimum clearance of 6 inches above the spill line. What is a spill line? This is the level where the water starts to overflow from the rim of the sink, toilet, or tub.

Are cheater vents legal?

Sometimes called "cheaters," these tubular, spring-loaded $5 vents are rated for only 1/2 DFU (drainage fixture unit), and are not allowed under most building codes.

How do you vent a toilet without outside access?

How to Vent Your Bathroom with no Outside Access

1. Vent beneath the floor. If your bathroom is situated away from your exterior wall, venting through the roof is impossible. ...
2. Add a ceiling vent. ...
3. Expand your bathroom ducts. ...
4. Add a recirculating fan for your half bath. ...
5. Install commercial ductwork. ...
6. Add a fan.

How far can a vent be from a sink?

Install the vent between the sink P-trap and the point where the waste line leading from the trap drops to the main sewer. If the waste line has a diameter of 1 1/4 inches, the vent can be no farther than 2 1/2 feet from the trap. If the waste line is 1 1/2 inches, this critical distance is 3 1/2 feet.

How close can a toilet be to a sink?

So, it may only be possible to provide for the bare minimum clearances. In this case, make sure that the center line of the toilet is at least 15 inches from the nearest wall or sink. Eighteen inches would be preferred. Installing a pedestal sink can help give the feeling of greater room in these small areas.

Can you use one vent for the whole bathroom?

In new construction, the simplest way to vent a bathroom group is usually to install a single vertical vent pipe behind the bathroom sink. This works as long as all the plumbing fixtures connect to the main drain line in the floor within 6 to 10 lineal feet of the sink drain.

Can you vent a toilet in the attic?

Yes, a plumbing vent can terminate in the attic. But it must have an air admittance valve at the termination to keep noxious sewer gas fumes from rising into the attic.

Can two toilets share the same vent?

Most houses have more than one toilet, and if they are on the same side of the house, their waste lines can usually tie into the same stack. If they are on opposite sides, however, each may need its own stack. Since the stacks must be vented, this would mean two vent openings on the roof.

Does every plumbing drain need a vent?

Without getting too far into building science, a general plumbing rule of thumb is that every drain needs a trap, and every trap needs a vent. All those traps and drains are designed to prevent sewer gas from entering your home.

Can a plumbing vent go up and down?

A vent must not allow accumulation of trapped air/gasses. Bending downwards would probably not be acceptable.

How many plumbing vents can be tied together?

You can usually tie up to eight fixtures to a single stack, but local codes differ, so it's a good idea to check.

Can a toilet have a 2 inch vent?

PlumbersStock explains that all toilets need venting and suggests using a 2-inch PVC pipe that conforms to the Uniform Plumbing Code. If you are unsure, it is best to check with the local building code requirements. The distance from the trap and vent should not be more than 6 feet to work correctly.

How tall does a toilet vent need to be?

The International Plumbing Code (IPC), requires plumbing vent pipes to extend vertically at least 152 mm (6 in.) above a roof, per Section 905.5, "Vent Connections and Grades." Additionally, vent pipes must be at least 305 mm (12 in.) away from a vertical surface.

How far can you run a toilet drain?

Tie the waste line from the new toilet directly into the stack if the toilet is within six feet of the stack and the waste line is 3 inches in diameter. If the waste line is 4 inches in diameter, the toilet can be as far as 10 feet from the stack.

Can you wet vent a bathroom?

A wet vent can handle all the fixtures in two bathroom groups (a bathroom group is a lav, toilet, bidet, and tub or shower). To stay out of trouble with wet vents, go beyond code and use a 4-in. main horizontal waste line where possible.
